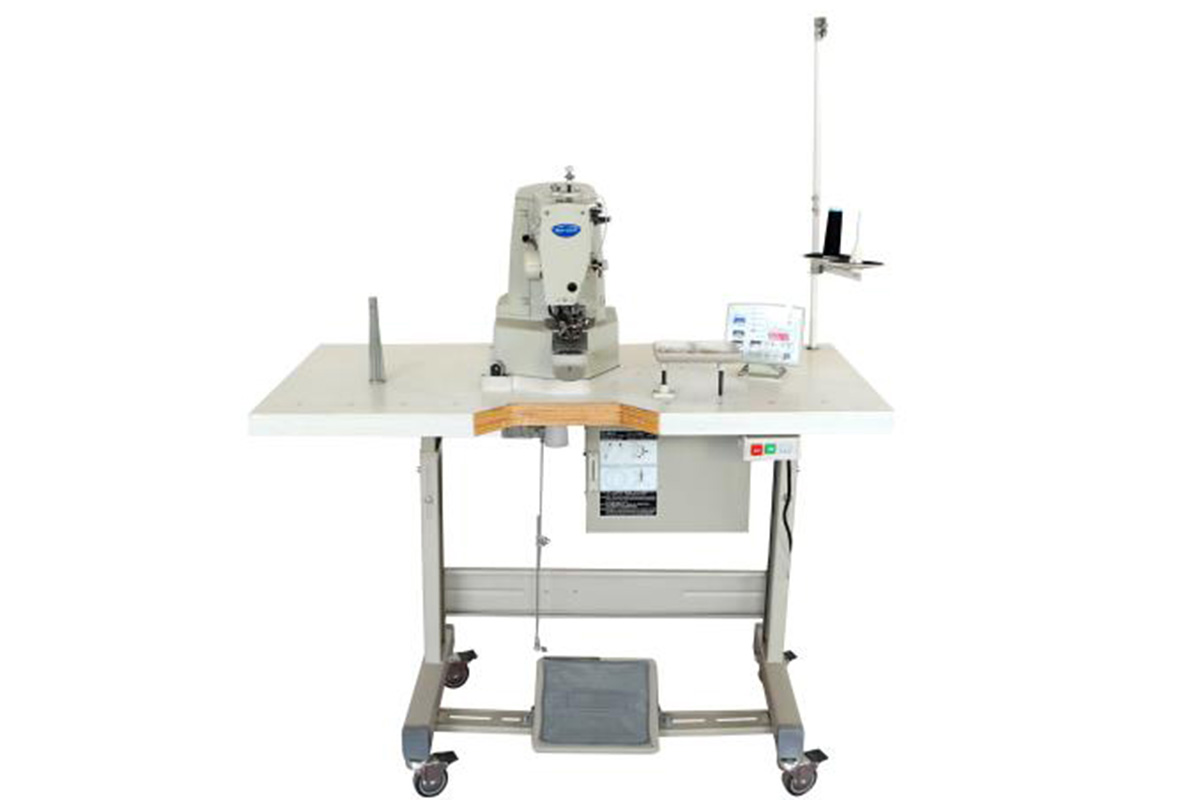

438/D 430/D Electronic Direct Drive Punterising Machine

Stitch Properties

• Stitch Shape: Single Needle Flat Stitch
• Maximum Sewing Speed: 3200 rpm (Rpm)
• Stitch Area (X-Y): Max. 40 x 30 mm
• Feeding Mechanism: Y-θ Intermittent feed mechanism (pulse-motor drive mechanism)
• Stitch Length: 0.05 - 12.7 mm
• Stitch Count: Variable (See "Programme List" for preset stitch formats)
• Maximum Stitch Count: 210,000 stitches (including 200,000 stitches to be added)

Machine Features

• Foot Lifter Pulse motor drive system
• Foot Height: 17 mm maximum
• Hook Shuttle hook (double shuttle hook, optional)
• Slapper, Thread Cutter, Lower Thread Holder, Thread Trimer, Thread Nipper: Standard equipment
• Data Storage & User Programmes
• Data Storage Method: Flash memory (any pattern can be added using a CF card)
• User Programmes: 50
• Number of Cycle Programmes: 9 cycles (15 programmes per cycle)
• Number of Stored Data: Set from 89 stitch patterns (up to 200 patterns can be added. A total of 200,000 stitches can be stored)

Motor & Power Supply

• Motor: AC servo motor 550W
• Power Supply: Single phase 100V, 200V, Three phase 200V/220V/380V/400V, 400VA

Weight

• Machine Head 56 kg
• Control box 14.2 - 16.2 kg (may vary depending on luxury type)
