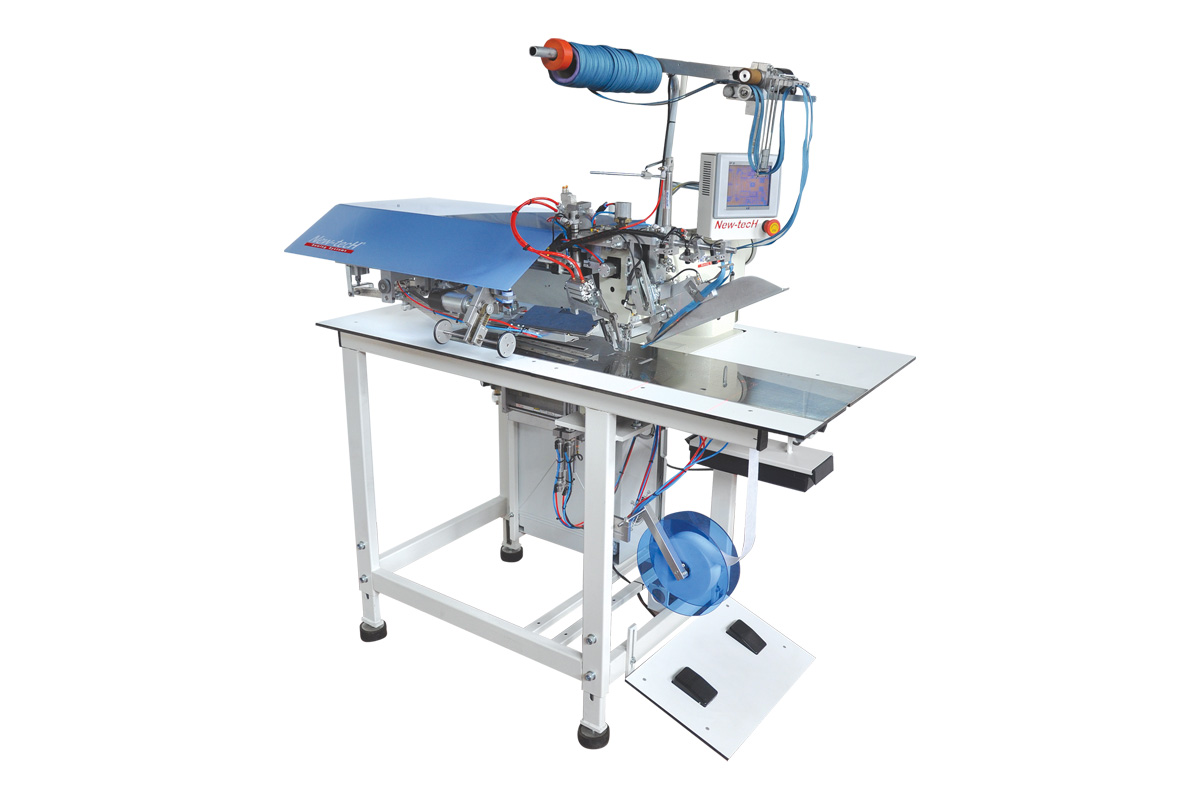

Product Image
Standard Features
- PLC control unit with LCD touch screen
- New-tech direct drive double needle lockstitch sewing head
- Pneumatic upper and lower yarn cutting system
- Servo sewing motor 220V 50/60 Hz
- Stepper motorised main guide system with fleto length adjustable between 20-200 mm
- Stepper motorised corner retraction system (0.2 mm forward or backward)
- Blade motorised cutting system that ensures smooth cutting of the fabric at any speed setting
- Sewing start and end can be adjusted forwards or backwards
- Fabric tension seam tightness and freedom adjustable system
- Upper yarn control system
- Programmable end-of-stitch thread catching system
- Clamshell slicers start and end photocell control system
- Daily menstrual counter
- 3 pcs marking laser system
- Automatic sewing finishing warp cleaning system
- Needle pitch standard 14 mm (10 mm-20 mm on request)
- Automatic fabric transport system
- Edge wire and cutting system
- Roll-to-roll zip fastening and cutting system
- Fletö mesh ironing system
- Fletö ironing mould
- Automatic switching system for stitch gauge adjustment
Model : New-tecH 2025 / 3
Capacity : 1800-2000 Pocket / 8 Hours
Tracksuit Fletö Vending Machine
ADDITIONAL ACCESSORIES
- Automatic ironing
- Vacuum system
- Fabric handle bar
- Fletö mesh ironing mould
- Fleto ironing system up to 240 mm
- Stitch size
- Edge wire cutting and cutting system
- Fletö mesh ironing system
- Additional marking laser
