Model : New-tecH 2250/5

Capacity : 1800 - 2000 Pieces / 8 hours

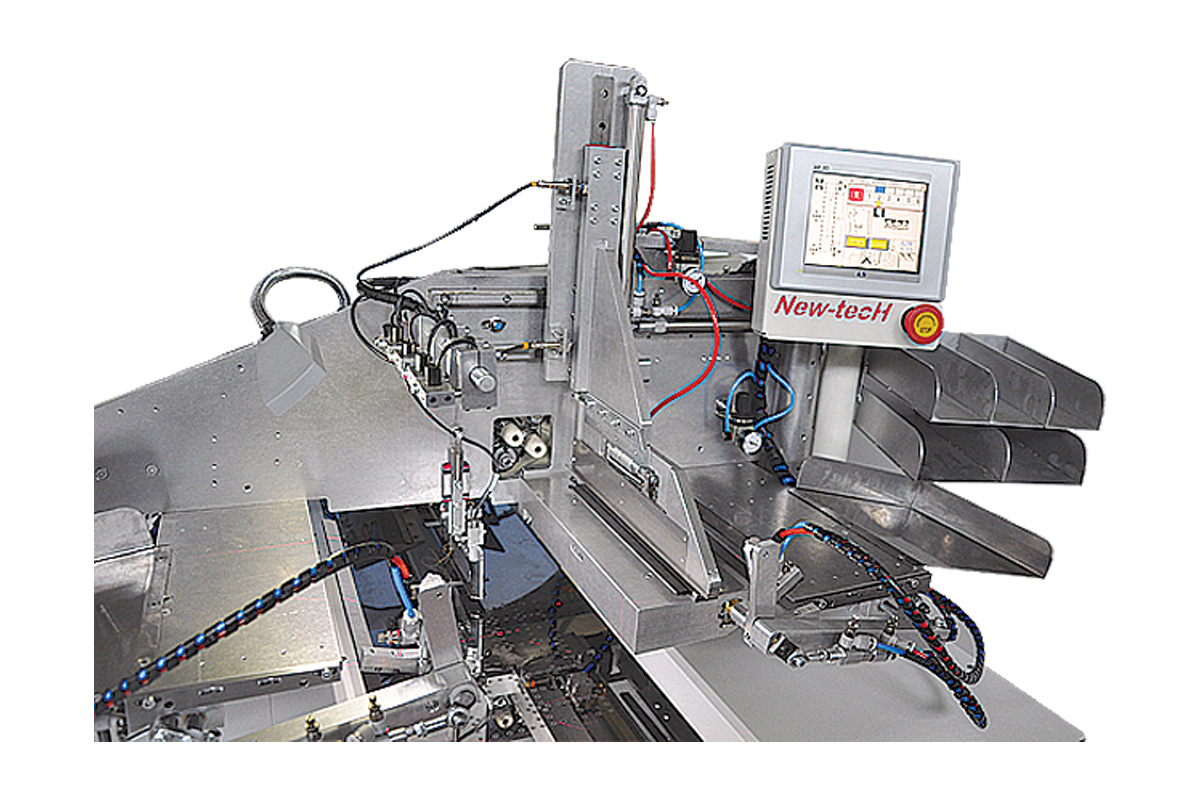

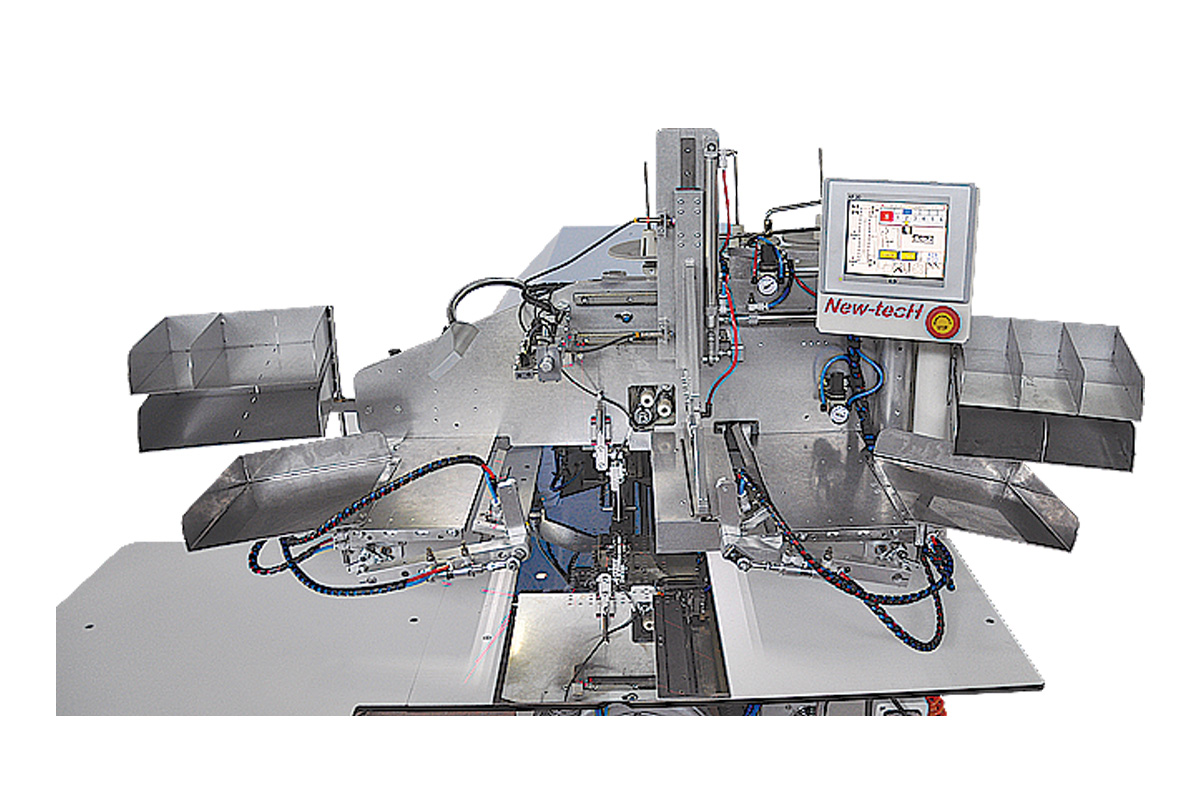

Automatic Jacket Fleto Vending Machine / Robot

Standard Features
  • Automatic lid and fleto transport system.
  • Double sided pocket fletö carrying system.

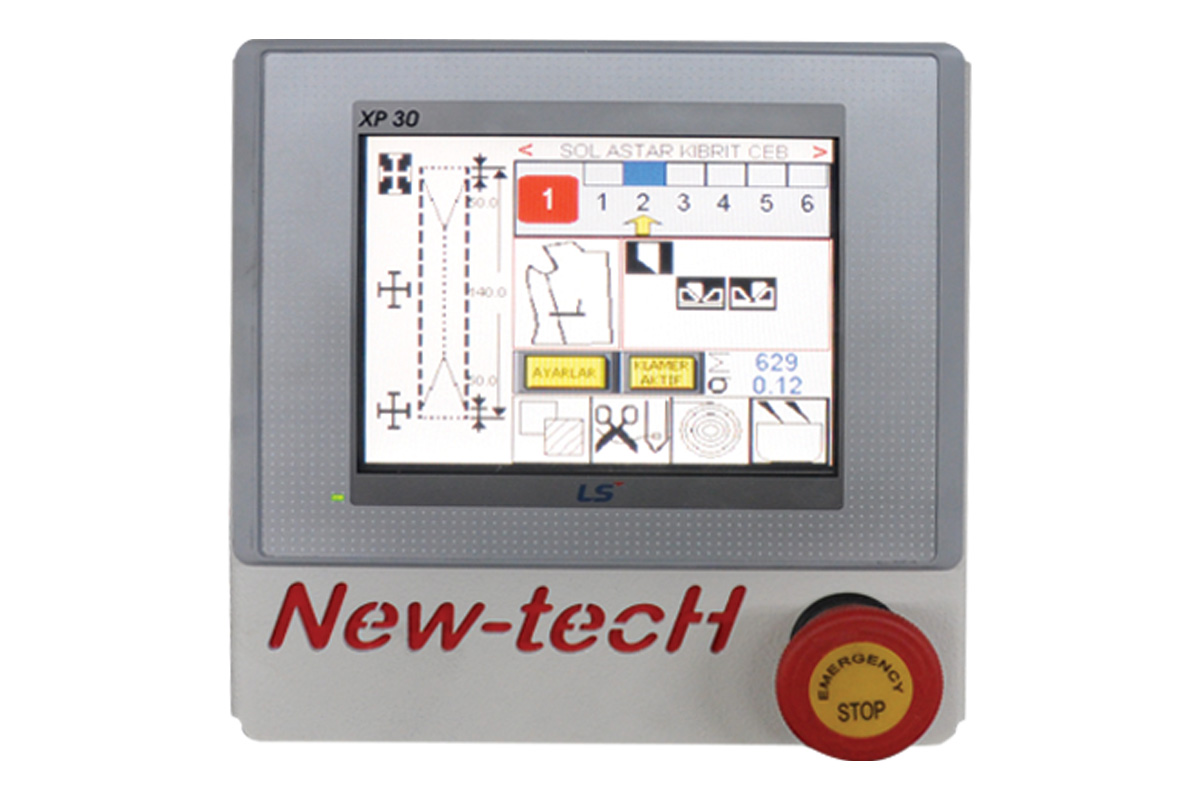

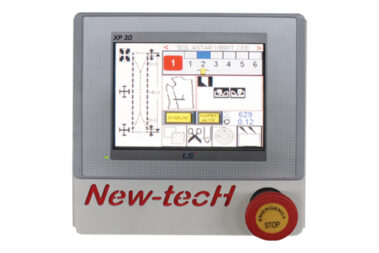

  • PLC control unit with LCD touch screen.
  • New-tech direct drive double needle lockstitch sewing head.
  • Pneumatic upper and lower thread cutting system.
  • Servo sewing motor: 220V 50/60 Hz.
  • 120 - 200 mm length adjustable stepper motorised main guide system.
  • Stepper motor driven corner traction system (0.2 mm forward or backward).
  • Medium blade motorised cutting system with fabric or leather adjustment.
  • Back and forth and tightening system at the beginning and end of sewing.
  • Upper thread control system.
  • Programmable end of stitch thread catching system.
  • Start and end photocell control system for capped breeds.
  • Daily menstrual counter.
  • 4 laser marking systems.
  • Stacking.
  • Vacuum system.
  • Vacuum motor 2850 50 H.
  • Needle pitch standard 12 mm (10 mm - 30 mm on request).

ADDITIONAL ACCESSORIES

  • Fletching and cutting system.
  • Automatic stacking.
  • Fabric holding system (rollers).
  • Pocket fleto attachment.
  • Automatic switching system for vacuum system.
