Model : New-tecH 2050/5

Capacity : 900 - 1000 pieces / 8 hours

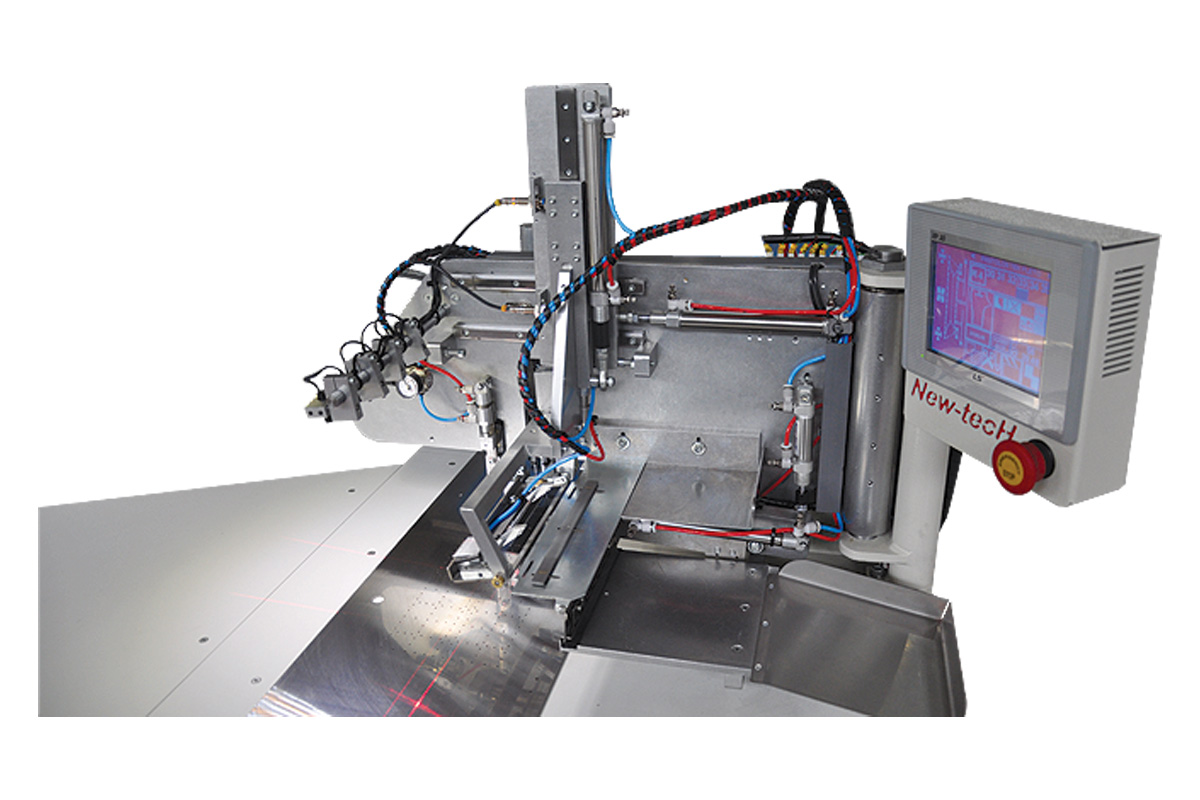

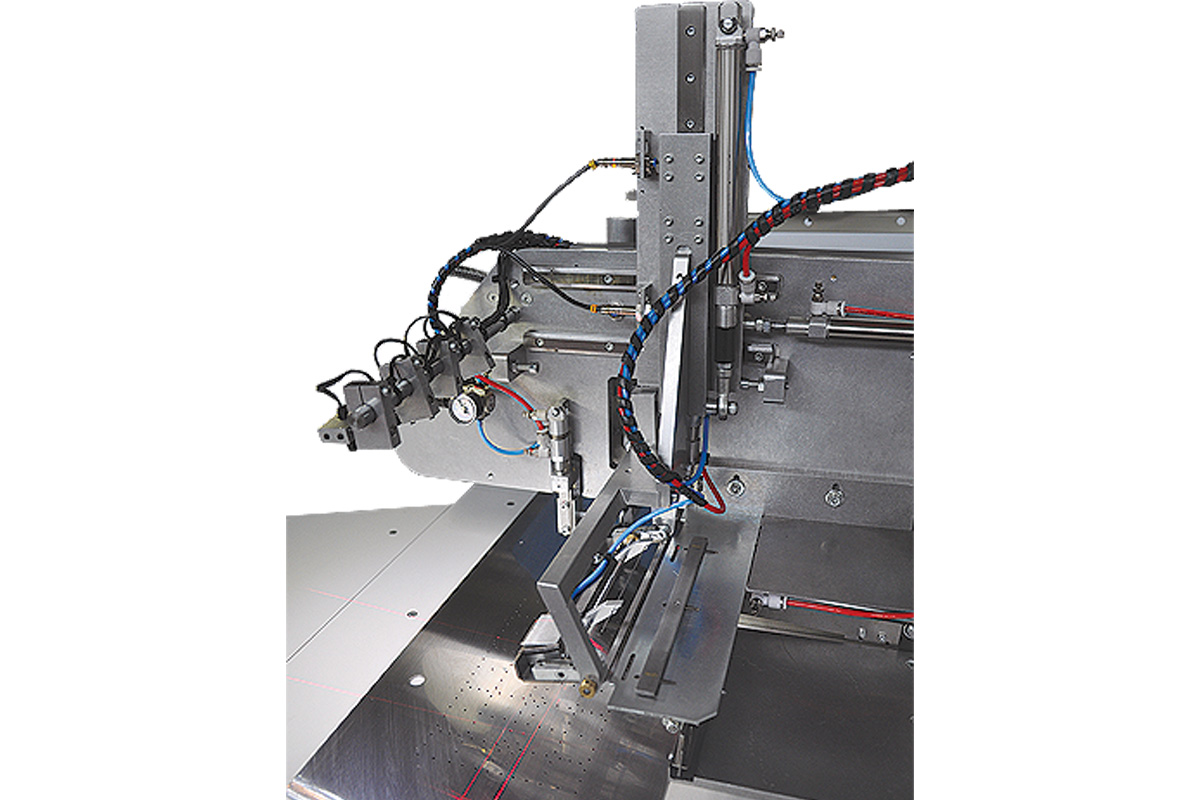

Jacket Peto Pocket Vending Machine

Standard Features

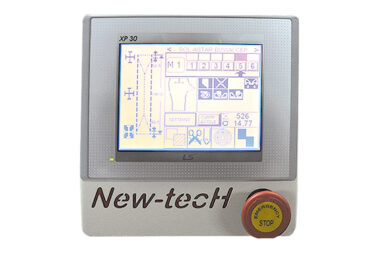

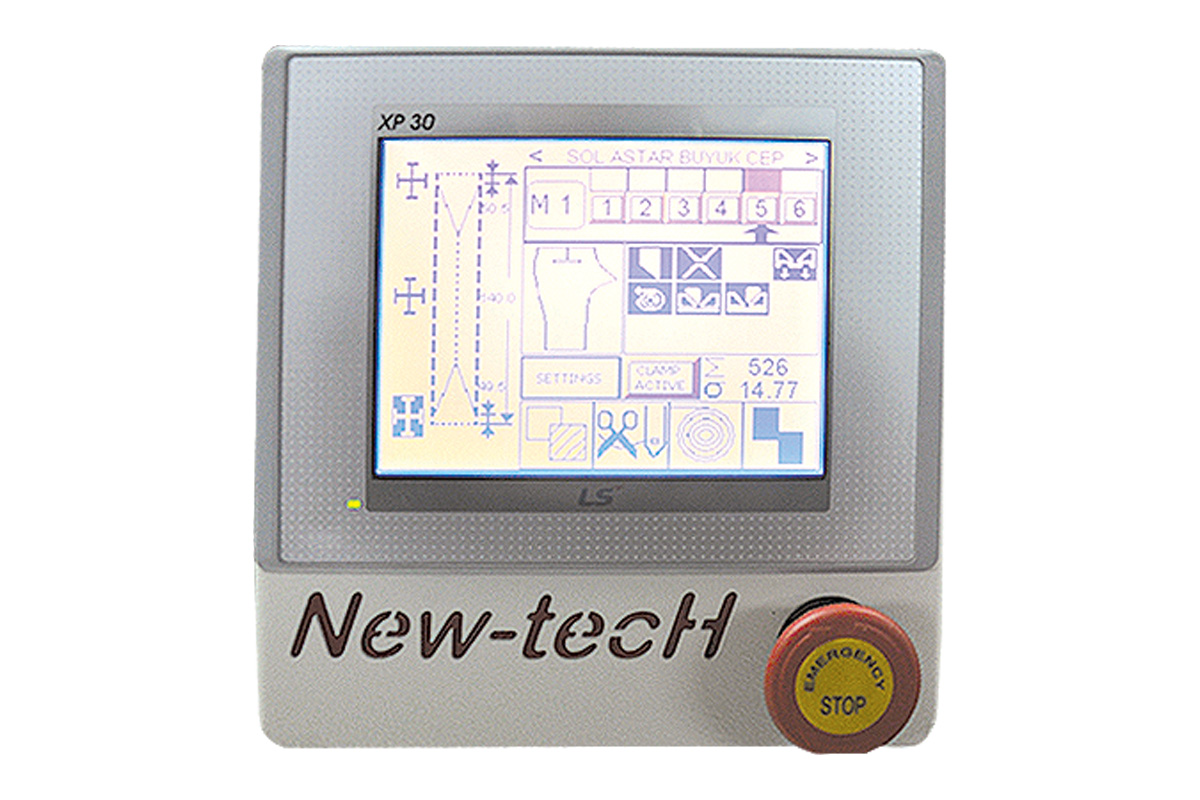

  • PLC control unit with LCD touch screen.
  • New-tech direct drive double needle lockstitch sewing head.
  • Automatic peto transport system.
  • Automatic square fastening system.
  • Automatic needle ball bar holding system.
  • Automatic pocket top bar transport system.
  • Pneumatic upper and lower thread cutting system.
  • EFKA Servo sewing motor: 220V 50/60 Hz.
  • Stepper motorised main guide system.
  • Stepper motor driven corner traction system (0.1 mm forward or backward).
  • Adjustable cutting system with centre blade motor.
  • Back and forth system finishing the beginning of the seam.
  • Stitch tightness and level adjustment system.
  • Upper thread control system.
  • Programmable end of stitch thread catching system.
  • Start and end photocell control system for capped breeds.
  • Daily menstrual counter.
  • 4 marking laser systems.
  • Stacking.
  • Vacuum system.
  • Vacuum motor 2850 50 H.
  • Standard needle pitch: 12 mm (10 mm - 30 mm on request).
